Extensions

#Action

An action Extension is designed to make HTTP POST request.

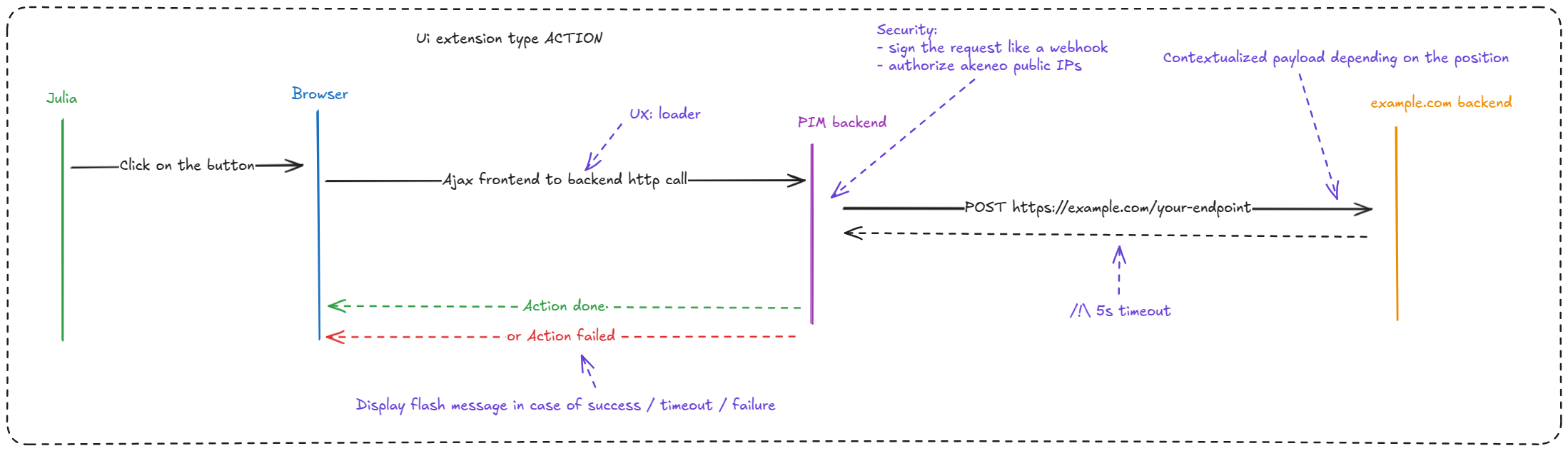

Here is a diagram illustrating the workflow: action-extension-schema.png

Data sent within the POST body, formatted in JSON, contain:

  • A context object containing:

    • the configured locale,
    • the configured channel,

  • A user object containing the uuid, username and groups of the connected user.

  • A timestamp that can be used with a secret to help you to protect your server against replay attacks.

  • A data object with different fields depending on the position:

    Position Field Type Description
    pim.product.header productUuid string The UUID of the product
    pim.product-model.header productModelCode string The root model code
    pim.sub-product-model.header productModelCode string The sub model code
    pim.product-grid.action-bar productUuids string[] UUIDs of selected products
    pim.product-grid.action-bar productModelCodes string[] Codes of selected product models and sub models
    pim.product.index - - Empty object

Examples :

{
      "data": {
        "productUuid": "ecfddba2-59bf-4d35-bd07-8ceeefde51fd"
      },
      "context": {
        "locale": "en_US",
        "channel": "ecommerce"
      },
      "user": {
        "uuid": "e05cc457-b8ac-43b1-baa7-c4c112091ad8",
        "username": "julia",
        "groups": [
          "Manager",
          "All"
        ]
      },
      "timestamp": 1739948408
    }

#Signature

It's possible to configure a secret to sign the body of the POST request sent to the destination (SHA-512 protocol).

#Available Positions

See the Positions documentation for visual examples.

#Limitations

  • Timeout: The PIM HTTP client that communicates with the destination is configured with a timeout of 5 seconds.
  • No retry mechanism: Failed requests are not automatically retried
  • No progress updates: Users don't see real-time progress
  • 500 item limit: Grid actions limited to 500 products/models
  • Single execution: An action cannot be executed multiple times simultaneously. This ensures that tasks are processed in a controlled manner.
